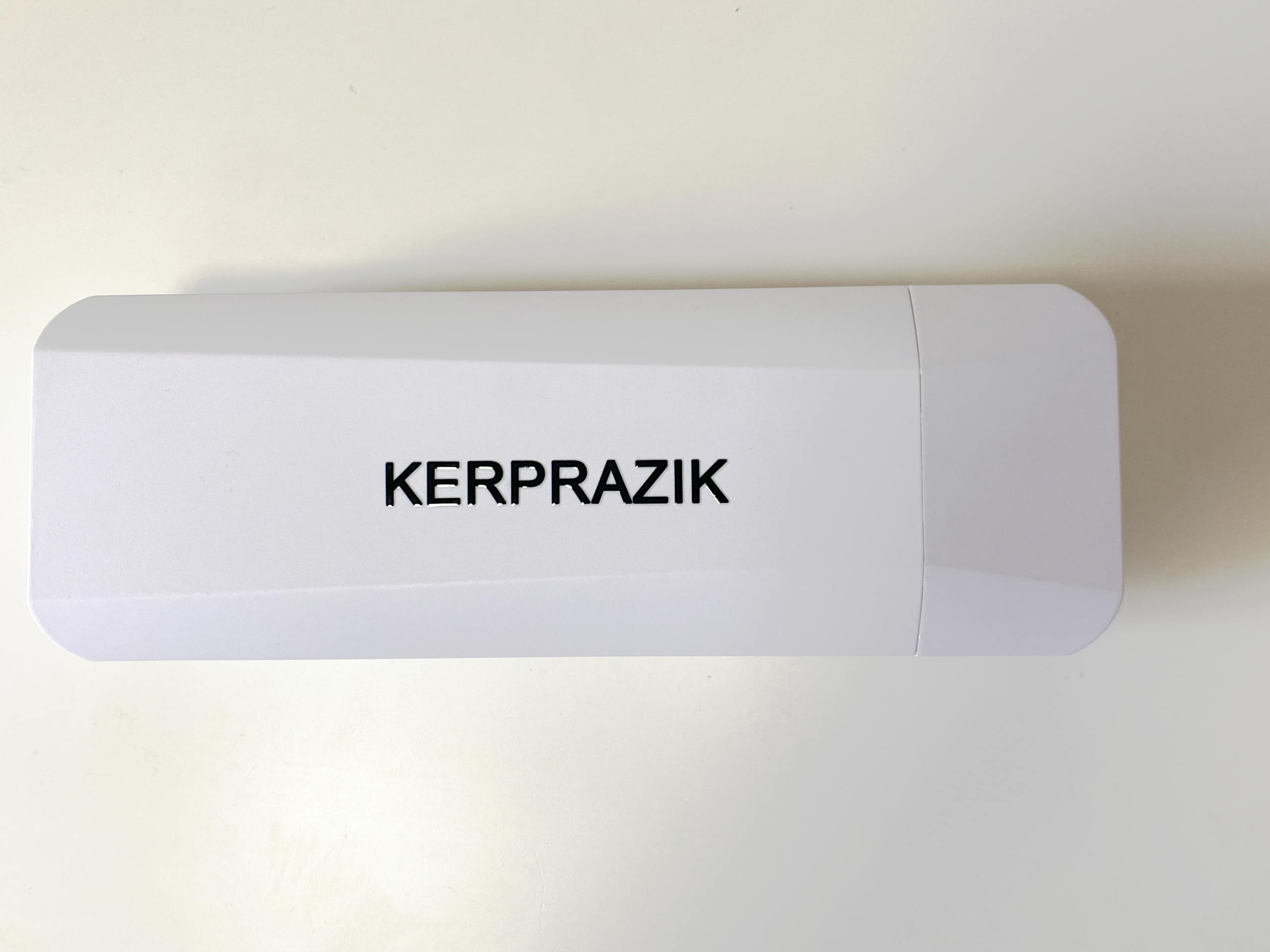

Kerprazik LWB03 Wireless Bridge
Kerprazik LWB03 Wireless Bridge - Image 2
Kerprazik LWB03 Wireless Bridge - Image 3
Kerprazik LWB03 Wireless Bridge - Image 4
Kerprazik LWB03 Wireless Bridge - Image 5
Kerprazik LWB03 Wireless Bridge - Image 6
Kerprazik LWB03 Wireless Bridge - Image 7
Kerprazik LWB03 Wireless Bridge - Image 8

Kerprazik LWB03 Wireless Bridge

(10 customer reviews)
Availability:

295 in stock

Brand: Kerprazik
Manufacturer: Linktti Technology Limited
Model: Kerprazik LWB03
Product Category: Devices for wireless radio transmission
Date First Available: October 10, 2025
Date First Listed: October 10, 2025
Products available for purchase and shipping to countries: United States, European Union Countries, United Kingdom, Japan, South Korea, Canada, Mexico, Brazil
UPC Code: 757047983949

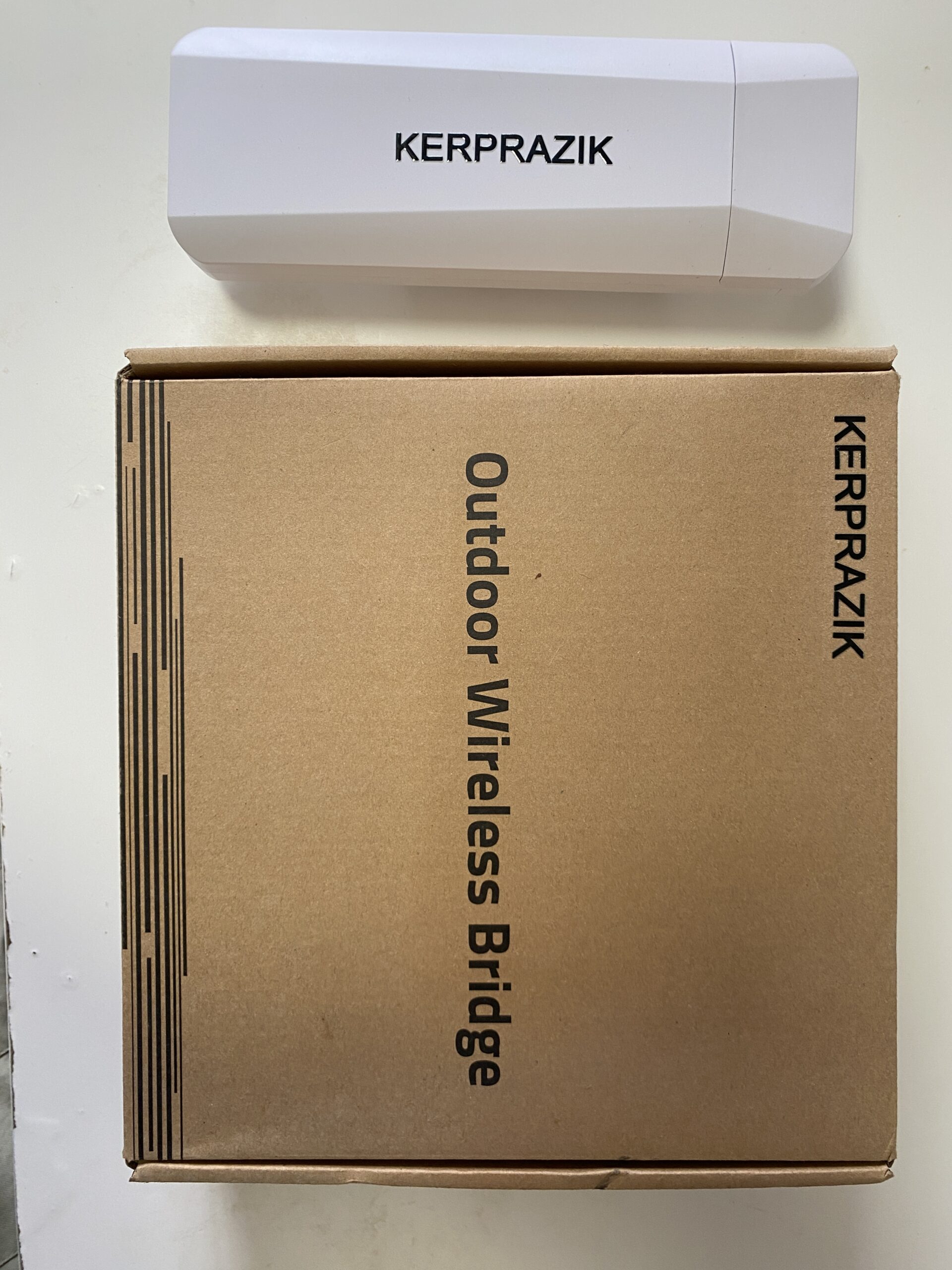

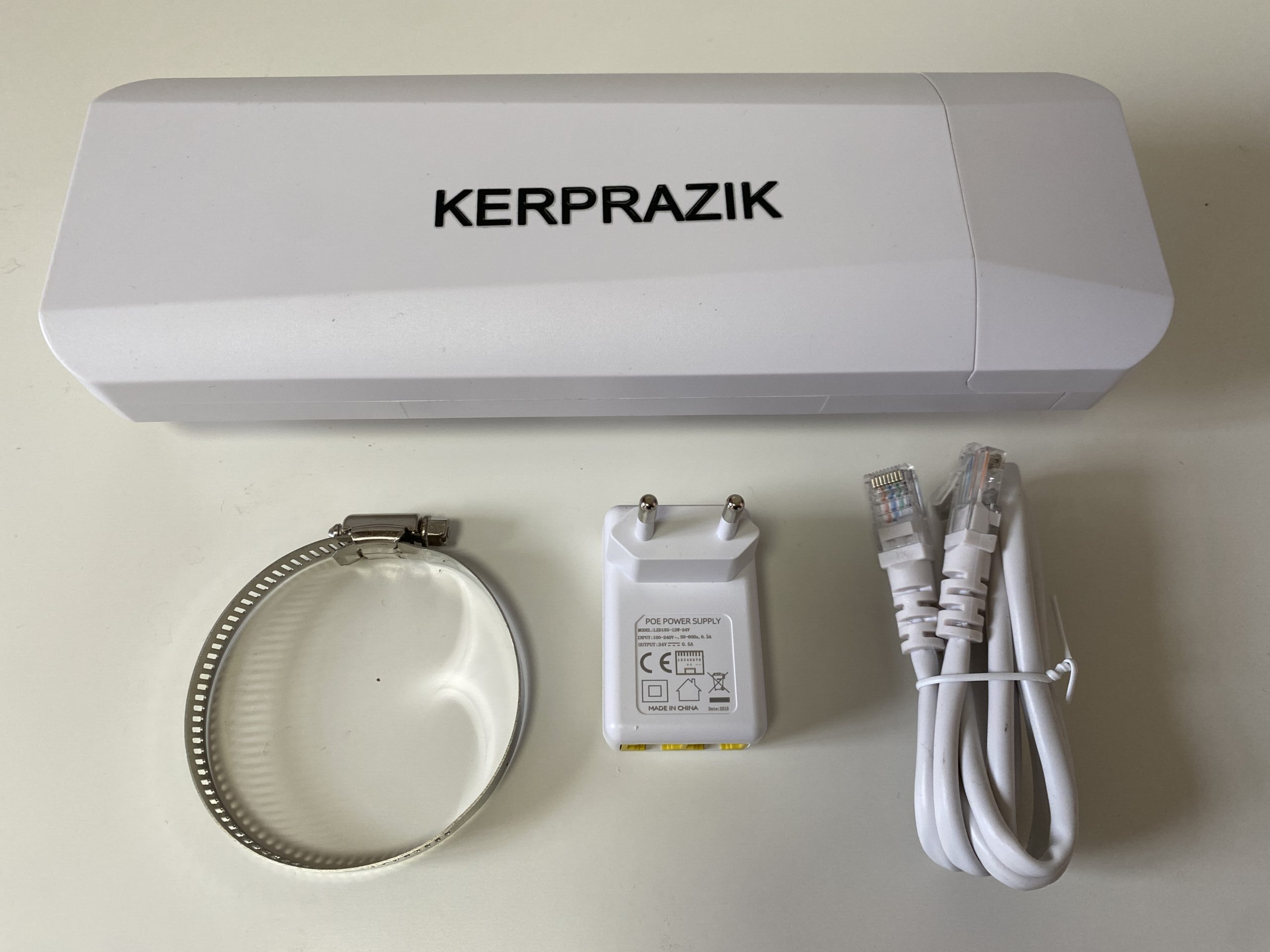

Pack List: wireless bridge device, mount kit,  DC power adapter, user manual
SKU: LWB03









US$20.00 US$32.00

295 in stock

Brand: Kerprazik
Manufacturer: Linktti Technology Limited
Model: Kerprazik LWB03
Product Category: Devices for wireless radio transmission
Date First Available: October 10, 2025
Date First Listed: October 10, 2025
Product purchase available countries: United States, European Union Countries, United Kingdom, Japan, Korea

Kerprazik LWB03 is an outdoor 802.11 a / n /ac wave2 standard wireless Bridge released by Kerprazik.
The Kerprazik LWB03 device contains a radio transmitter to send data over the air and a radio receiver to pick up data sent from the other Kerprazik LWB03 wireless bridge.
Kerprazik LWB03’s core function involves converting a wired Ethernet signal into radio waves for wireless transmission, and then converting them back at the other end. Kerprazik LWB03 utilizse radio frequency (RF) signals to establish a connection between two or more points without a physical cable. Kerprazik LWB03 is an ideal product to “bridge” two separate networks or network segments using this radio link, effectively acting as an extension of your wired network over a distance.

The product is a device for wireless radio transmission. It works like a bridge to transit Wi-Fi 5.8GHz radio wirelessly from one LWB03 model  device to another LWB03 model device.

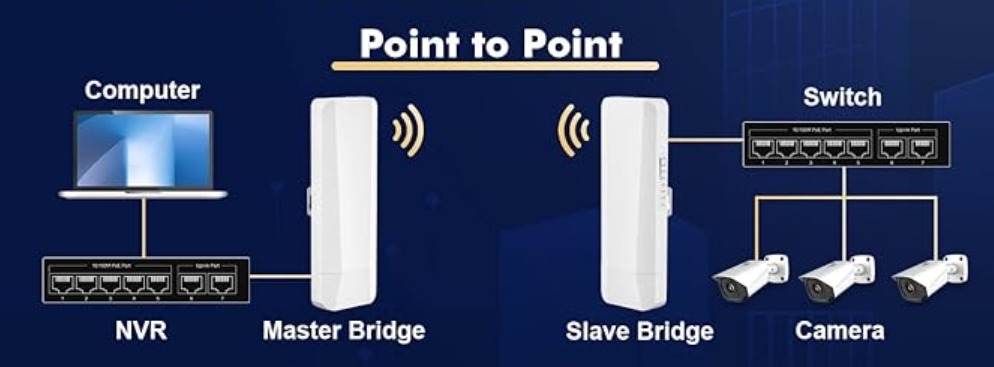

The product connects two or more separate networks wirelessly, making them act as one single network, ideal for linking locations where cables are impractical (like buildings) or extending coverage for devices far from the main router, creating a seamless, cable-free extension. It operates at the data link layer (Layer 2) to merge networks, allowing devices on both sides to communicate as if physically connected.

It is a single radio 5GHz 450Mbps wireless bridge, P65 water-proof, 24V POE power in, internal 12dBi panel antennas, good for 3km wireless connection. Basic Capabilities
Support single radio
−  5GHz (1×1 MU-MIMO and 1 spatial streams)  450Mbps
−  Built-in 12dBi antennas, up t0 8km wireless connection
−  Ports 1x WAN 10/100Mbps 24V PoE In, 1x LAN 10/100Mbps, 1x DC 12V, 1x Reset
Wireless connection distance
Up to 3KM













SKU: LWB03 Category:

Hardware Datasheet

Model Kerprazik LWB03
Device housing Fire-Resistant and UV-Resistant plastic PC+ABS, white
Device Net Weight 0.9KG
Device Dimensions (excluding mounting accessories) 25.8 x 9 x 5.7cm L x W x H
Chipsets MT7628KN + 7610E
Flash SPI NOR 8MB
RAM DDR2 64MB


Frequency and MIMO

 Single-radio mode:

802.11ac/n/a : 5.15GHz-5.850GHz, 1×1:1, 450Mbps

20MHz/40MHz/80MHz
Interface 2 x 10/100Mbps Ethernet ports (RJ45, GE#1  PoE input)
PoE Input 1 x 10/100M Ethernet, 802.3at/af, or 24V PoE


Local power input 1 x 12V DC

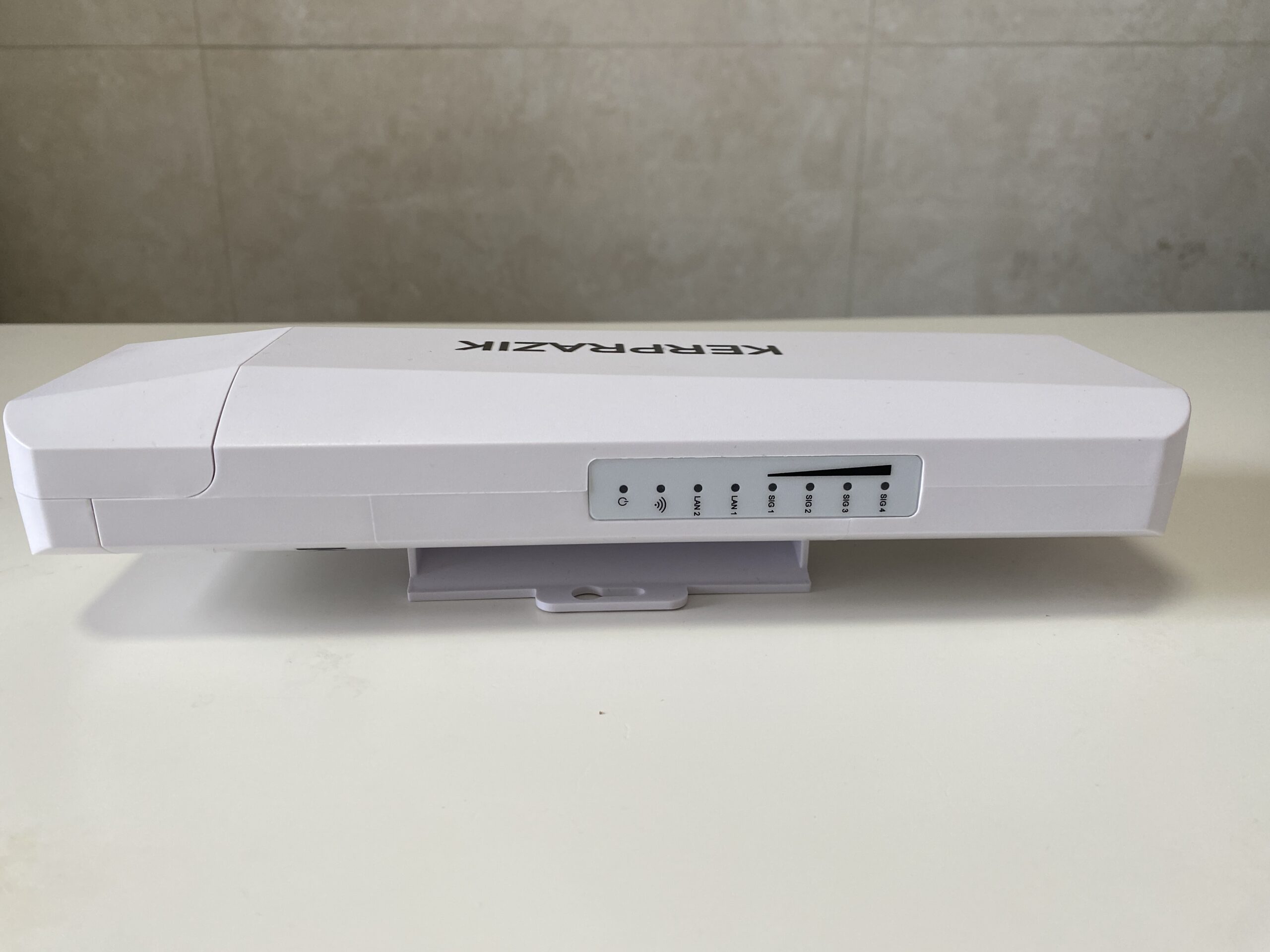

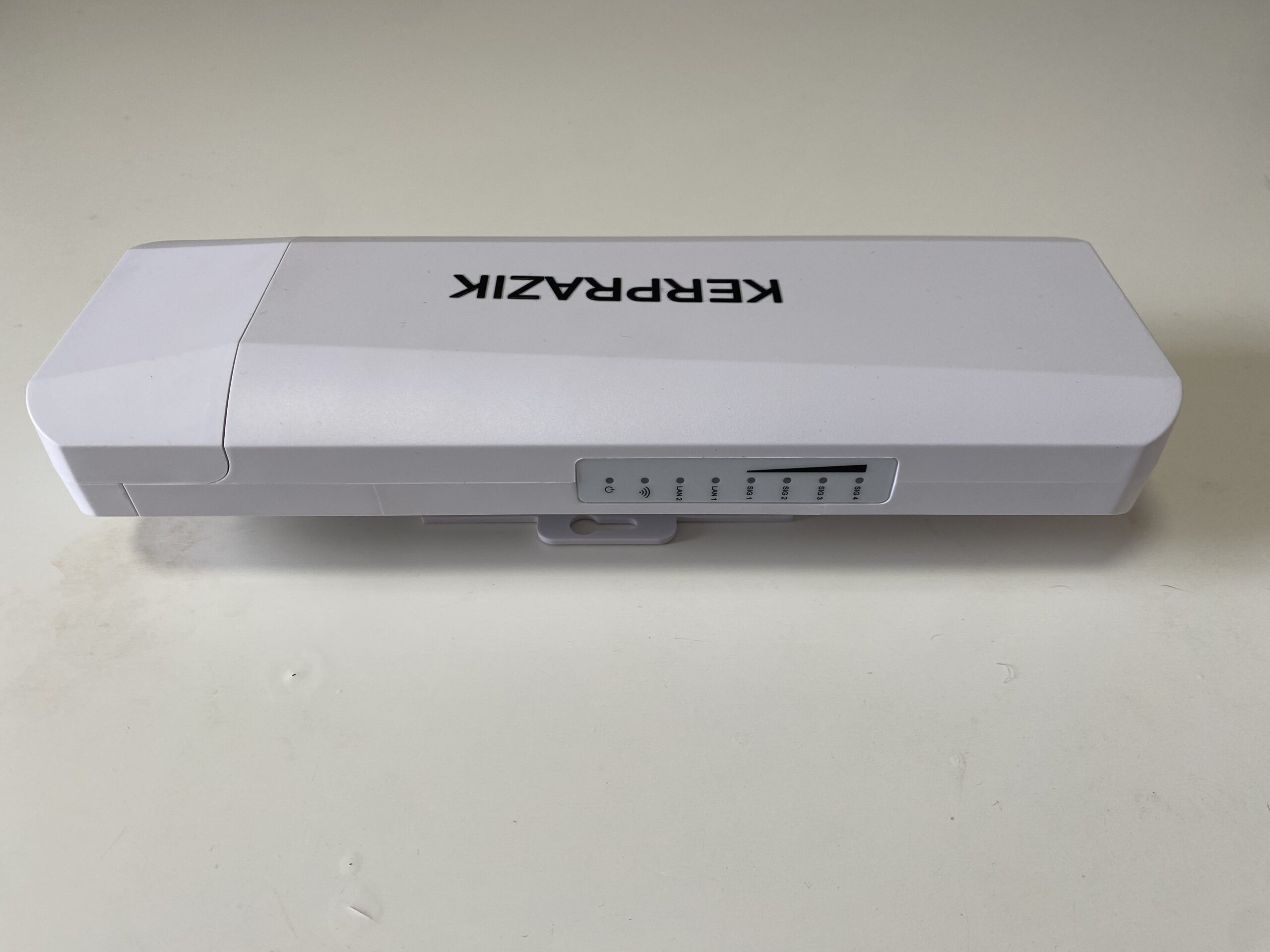

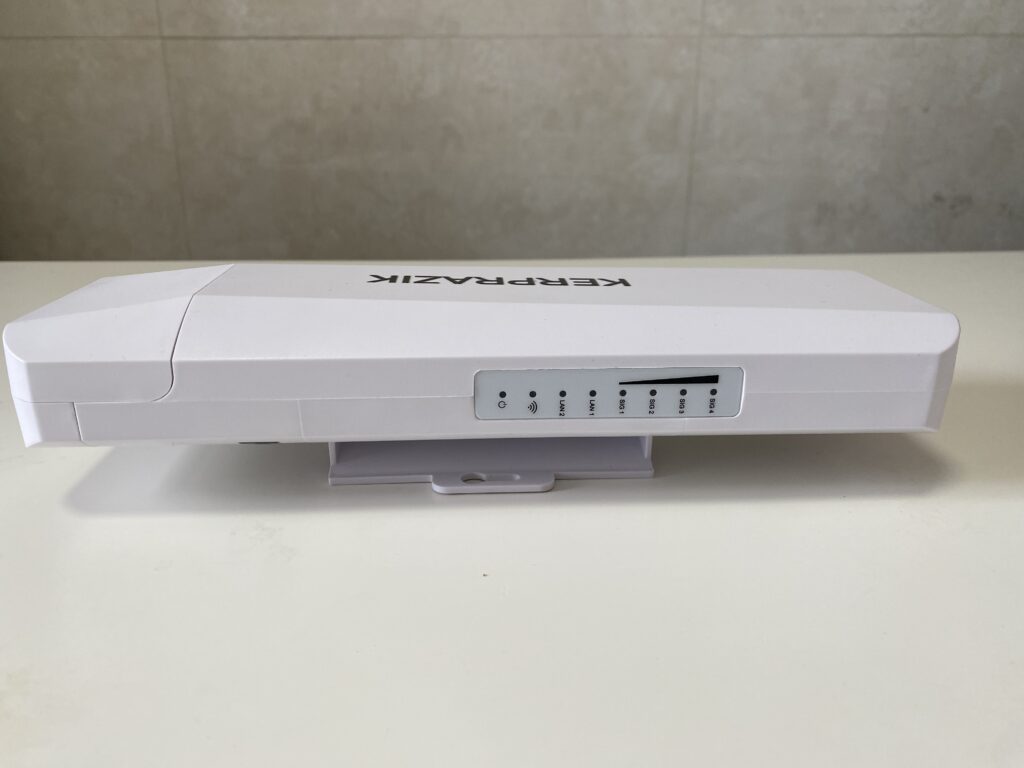

LED Indicator LED for SYS, WAN, LAN, WIFI, 4 x Signal strength
Reset 1 x reset button pressing for 6 seconds to reset to factory settings
Built-in antenna Built-in omni-directional antenna
Antenna Gain 5GHz peak gain: 12.6dBi

Note: The equivalent antenna gain is 12dBi in 5GHz
Maximum transmit power(limited by local regulatory requirements) 5150-5850MHz: 29dBm

(Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations)
Adjustable power 1dBm
Power consumption <10W
Radio Specifications:

Max. number of users per radio

 120
Operating temperature/storage temperature -30ºC～55ºC/-40ºC～70ºC
Operating humidity/storage humidity 5% to 95% (non-condensing)




Frequency bands

 5.150 to 5.250GHzU-NII-1

5.250 to 5.350GHzU-NII-2A

5.470 to 5.725GHzU-NII-2C

5.725 to 5.850GHzU-NII-3/ISM

Note: The available bands and channels are dependent on the configured regulatory domain (country)
Protection level IP67
Modulation OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps

MIMO-OFDM (11n): MSC 0-15

MIMO-OFDM (11ac): MCS 0-9


Modulation Mode 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps

11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps

11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM

11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
