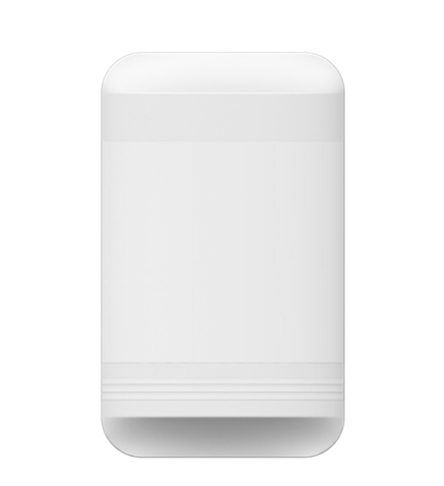

Kerprazik Wi-Fi6 outdoor AP MOD3000AX-DIR

Kerprazik Wi-Fi6 outdoor AP MOD3000AX-DIR

Brand: Kerprazik
Manufacturer: Linktti Technology Limited
Model: MOD3000AX-DIR

Support dual radios
−  2.4GHz (2×2 MU-MIMO and 2 spatial streams)  0.57Gbps + 5GHz (2×2 MU-MIMO and 2 spatial streams)  2.4Gbps.
−  Ports 1x WAN 1Gbps, 1x Reset, 1x RJ45 console

Feature Descriptions
Wi-Fi 6 (802.11ax) standards
l  As the latest generation Wi-Fi standards of IEEE 802.11, 802.11ax improves user experience in high-density access scenarios and supports 2.4 GHz and 5 GHz frequency bands.
l  MU-MIMO on both the 2.4 GHz and 5 GHz frequency bands, allowing an AP to transmit data to and receive data from multiple STAs simultaneously and multiplying the utilization of radio spectrum resources.
l  1024QAM modulation, improving data transmission efficiency by 25% compared with 802.11ac (256QAM).

US$62.00 US$68.00

MOD3000AX-DIR is an outdoor Wi-Fi 6 (802.11ax) standard wireless access point (AP) released by Linktti. It can reach a rate of up to 2.97Gbps. It is ideal for Wi-Fi covering scenarios such as chain stores, enterprise offices, cafes, and leisure centers.

Basic Capabilities
Support dual radios
−  2.4GHz (2×2 MU-MIMO and 2 spatial streams)  0.57Gbps + 5GHz (2×2 MU-MIMO and 2 spatial streams)  2.4Gbps.
−  Ports 1x WAN 1Gbps, 1x Reset, 1x RJ45 console

Feature Descriptions
Wi-Fi 6 (802.11ax) standards
As the latest generation Wi-Fi standards of IEEE 802.11, 802.11ax improves user experience in high-density access scenarios and supports 2.4 GHz and 5 GHz frequency bands.
MU-MIMO on both the 2.4 GHz and 5 GHz frequency bands, allowing an AP to transmit data to and receive data from multiple STAs simultaneously and multiplying the utilization of radio spectrum resources.
1024QAM modulation, improving data transmission efficiency by 25% compared with 802.11ac (256QAM).
OFDMA scheduling enables multiple users to receive and send information at the same time, reducing latency and improving network efficiency.
Spatial reuse (SR) technology uses basic service set (BSS) coloring to enable APs and STAs to distinguish BSSs, minimizing co-channel interference.
The target wake time (TWT) allows APs and STAs to negotiate the sleep and wake time with each other, thereby improving the battery life of the STAs.

MU-MIMO
MU-MIMO technology enables an AP to send data to multiple STAs simultaneously, which doubles the radio spectrum resource usage, increases the number of access users and bandwidth, and improves user experience in high-density access scenarios.

High-Speed Access
The AP supports 160 MHz frequency bandwidth, which increases the number of available data subcarriers, expands transmission In addition, the AP uses 1024QAM modulation and MU-MIMO to achieve a rate of up to 2.4 Gbps on the 5 GHz band and 2.97Gbps for the device.

High Density Boost Technology
Linktti uses the following technologies to address challenges in high-density scenarios, including access problems, data congestion, and poor roaming experience:

Wired and wireless dual security gurantee
To ensure data security, Linktti APs integrate wired and wireless security measures and provide comprehensive security protection.

  • Authentication and encryption for wireless access
    The APs support WEP, WPA/WPA2-PSK, WPA3-SAE, WPA/WPA2-PPSK, WPA/WPA2/WPA3-802.1x, and WAPI authentication/encryption modes to ensure security of the wireless The authentication mechanism is used to authenticate user identities so that only authorized users can access network resources. The encryption mechanism is used to encrypt data transmitted over wireless links to ensure that the data can only be received and parsed by expected users.
  • Authentication and encryption for wireless access
    The AP access control ensures validity of APs. The CAPWAP link protection, DTLS/IPsec encryption and hardware encryption provide security assurance, improving data transmission security between the AP and the AC.

Automatic radio calibration
Automatic radio calibration allows an AP to collect signal strength and channel parameters of surrounding APs and generate an AP topology according to the collected data. Based on interference from and loads of authorized APs, rogue APs, and non-Wi-Fi interference sources, each AP automatically adjusts its transmit power and working channel to make the network operate at the optimal performance. In this way, network reliability and user experience are improved.

SKU: MOD3000AX-DIR Category:
Model MOD3000AX-DIR
Device housing Fire-Resistant and UV-Resistant plastic PC+ABS, white
Weight0.8 0.9KG
Dimensions (including mounting accessories) 304 × 181 × 88mm
Chipsets MT7981B+MT7976CN+7531AE
Flash SPI NOR 16MB
RAM 256MB, DDR3


Frequency and MIMO

 Dual-radio mode:

802.11ax/ac/n/a : 5.15GHz-5.850GHz, 2×2:2, 2.4Gbps

20MHz/40MHz/80MHz/160MHz

802.11ax/b/g/n : 2.4GHz-2.483GHz, 2×2:2, 0.574Gbps

20MHz/40MHz

Total 5GHz 2×2:2 + 2.4GHz 2×2:2, 2.974Gbps
Interface 2 x 10/100/1000Mbps Ethernet ports (RJ45,  GE#1 supoort PoE input 802.3at)
PoE Input 1 x 10/100/1000M Ethernet, 802.3at/af

802.3af/802.3at compatible power supply
LED Indicator LED for Power, System, Ethernet, 2.4G, 5G
Reset 1 x reset button pressing for 6 seconds to reset to factory settings
Built-in antenna Built-in panel directional antenna


Antenna Gain 5GHz peak gain: 14.4dBi

2.4GHz peak gain: 11.2dBi

Note: The equivalent antenna gain is 14dBi in 5GHz and 11dBi in 2.4GHz
Maximum transmit power(limited by local regulatory requirements) 2400-2483MHz: 28dBm

5150-5850MHz: 28dBm

(Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations)
Adjustable power 1dBm
Power consumption <16W
Radio Specifications:

Max. number of users per radio

 200
Operating temperature/storage temperature -20ºC～60ºC/-40ºC～70ºC
Operating humidity/storage humidity 5% to 95% (non-condensing)




Frequency bands

 2.400 to 2.4835GHzISM

5.150 to 5.250GHzU-NII-1

5.250 to 5.350GHzU-NII-2A

5.470 to 5.725GHzU-NII-2C

5.725 to 5.850GHzU-NII-3/ISM

Note: The available bands and channels are dependent on the configured regulatory domain (country)
Protection level IP67
Modulation OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps

MIMO-OFDM (11n): MSC 0-15

MIMO-OFDM (11ac): MCS 0-9

MIMO-OFDM(11ax): MCS 0-11
Modulation Mode 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps

11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps

11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM

11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM

11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Safety compliance IEC/EN 62368-1
GB 4943.1
SRRC
EMC
EN 301 489-1
EN 301 489-3
EN 301 489-17
EN 55032
EN 55035		 IEC/EN 61000-4-2
IEC/EN 61000-4-3
IEC/EN 61000-4-4
IEC/EN 61000-4-5
IEC/EN 61000-4-6
IEC/EN 61000-4-8
IEC/EN 61000-4-11
IEC/EN 61000-3-2
IEC/EN 61000-3-3


Radio frequency certification ETSI EN 300 328

ETSI EN 301 893

ETSI EN 300 440

FCC Part 15E
Health EN 50385:2017

EN IEC 62311:2020
MTBF > 305016 hours
